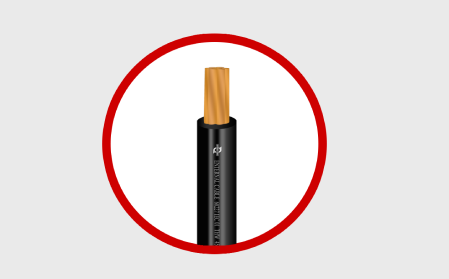

60227 IEC 01 THW
450/750 70 °C SOLID AND STRANDARD CONDUCTOR PVC INSULATED, SINGLE CORE
CABLE STRUCTURE
| Conductor | Solid and stranded annealed copper, Size 1.5 mm² up to 400 mm² |
| Insulation | Polyvinyl chloride (PVC/C) |
| Core Identification | Single-core : Any color |
TECHNICAL DATA
| Classification |
Maximum conductor temperature 70 °C Circuit voltage not exceeding 450/750 Volts 450 Volts between Line-to-Earth 750 Volts between Line-to-Line |
| Testing voltage | 2,500 Volts |
| Reference standard | TIS 11 Part 3-2553, Table 1 |
APPLICATION
Building wiring for installation on insulator or in raceway,
dry location.
