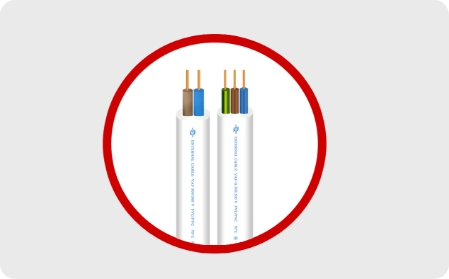

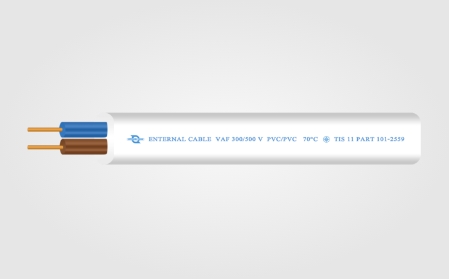

VAF
300/500 V 70 °C SOLID AND STRANDED CONDUCTOR PVC INSULATED AND SHEATHED, FLAT TYPE
CABLE STRUCTURE
| Conductor | Solid and stranded annealed copper, Size 1 mm2 up to 16 mm2 |
| Insulation | Polyvinyl chloride (PVC/C) |
| Core Identification | 2 Cores : Blue and Brown |
| Sheath | White polyvinyl chloride (PVC/ST4) |
TECHNICAL DATA
| Classification |
Maximum conductor temperature 70 °C Circuit voltage not exceeding 300/500 Volts 300 Volts between Line-to-Earth 500 Volts between Line-to-Line |
| Testing voltage | 2,000 Volts |
| Reference standard | TIS 11 part 101-2559, Table 1 |
APPLICATION
Building wiring for surface or above ceiling wiring or direct
Sh embeded in plaster.
VAF-G
300/500 V 70 °C SOLID AND STRANDED CONDUCTOR PVC INSULATED AND SHEATHED WITH GROUND,FLAT TYPE
CABLE STRUCTURE
| Conductor | Solid and stranded annealed copper, Size 1 mm2 up to 16 mm2 |
| Ground wire | Solid and stranded annealed copper, Size 1 mm² up to 16 mm² : |
| Insulation | Polyvinyl chloride (PVC/C) |
| Core Identification | 2 Cores : Blue and Brown Ground-Cores : Blue and Brown : Green/Yellow |
| Sheath | White polyvinyl chloride (PVC/ST4) |
TECHNICAL DATA
| Classification |
Maximum conductor temperature 70 °C Circuit voltage not exceeding 300/500 Volts 300 Volts between Line-to-Earth 500 Volts between Line-to-Line |
| Testing voltage | 2,000 Volts |
| Reference standard | TIS 11 part 101-2559, Table 1 |
APPLICATION
Building wiring for surface or above ceiling wiring or direct
Sh embeded in plaster.
